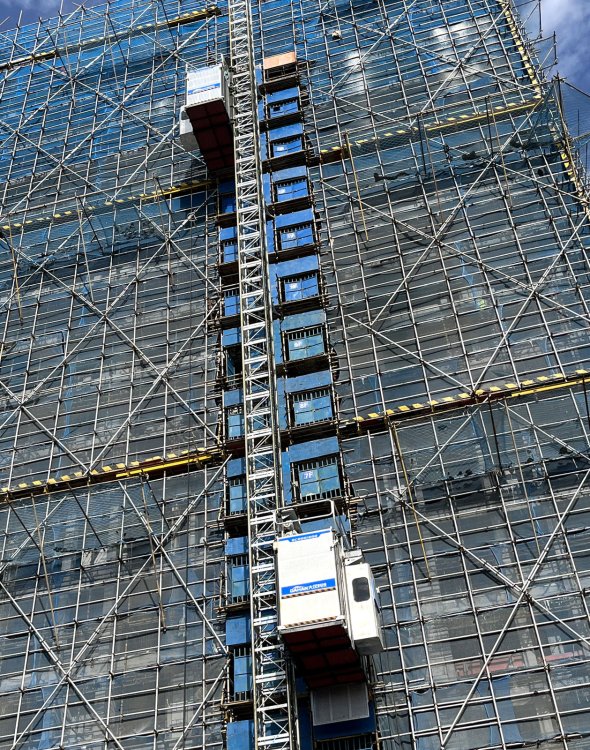

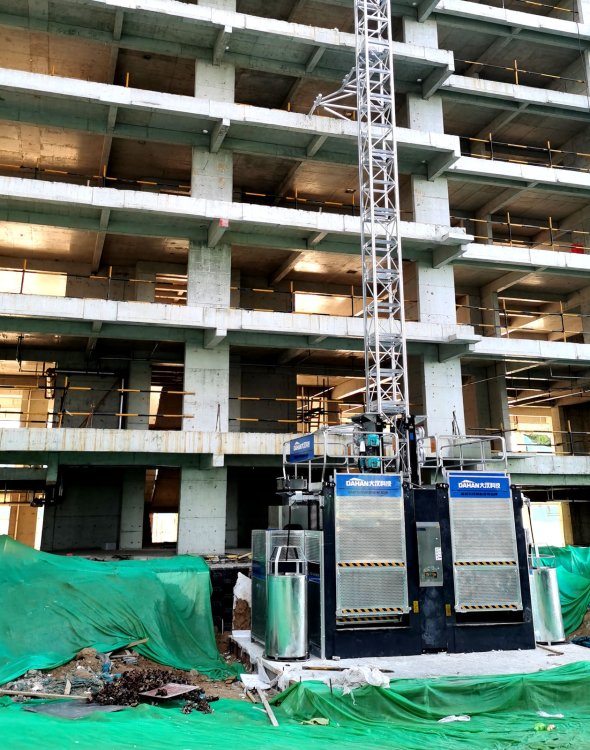

The SC200/200 Double Cage Construction Hoist is a high-efficiency vertical transportation system designed for construction sites. With a rated capacity of 2×2000kg, it allows simultaneous transport of workers and materials, significantly improving construction productivity. Equipped with a rack and pinion drive system, advanced safety devices, and CE-certified components, it ensures stable, safe, and efficient operation for high-rise building projects.

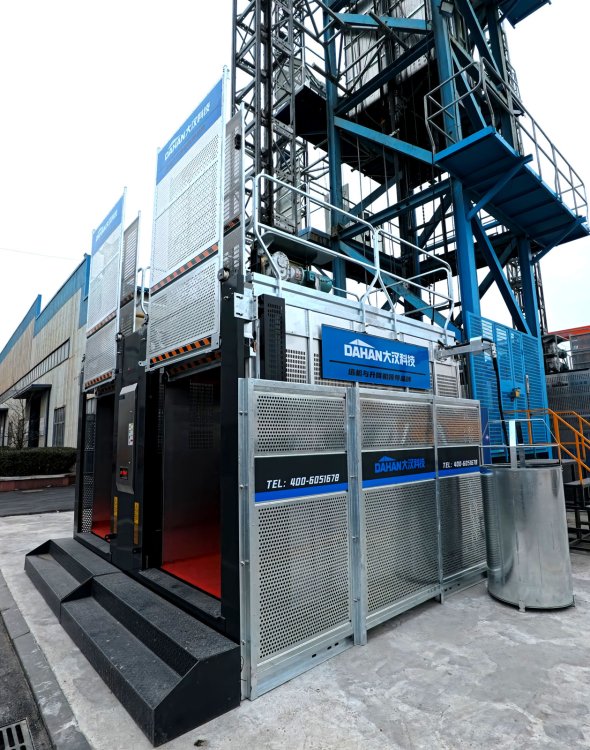

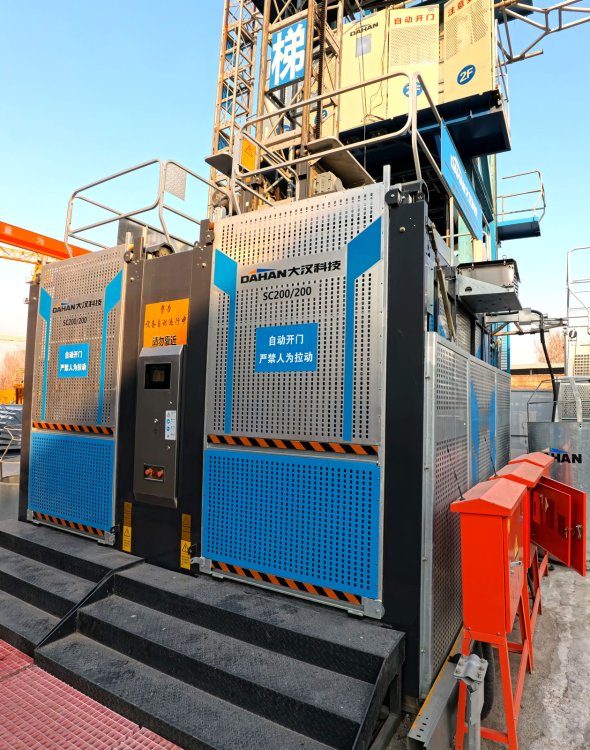

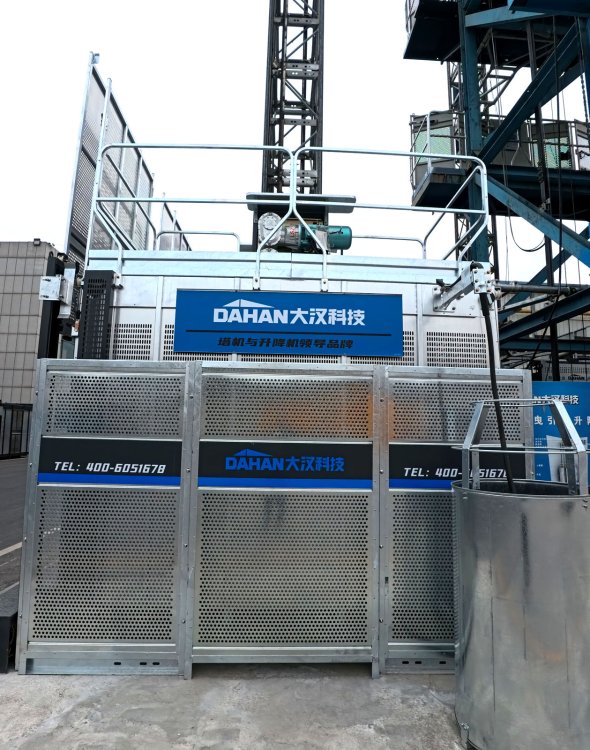

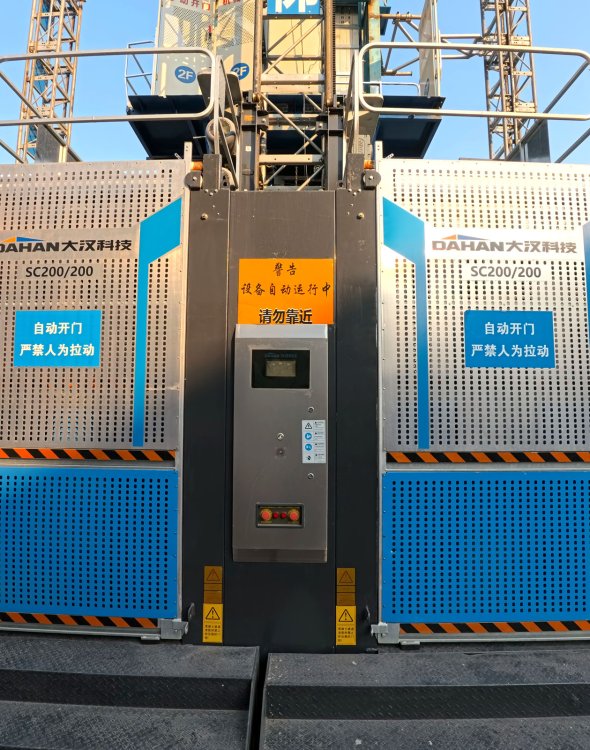

The DAHAN SC200/200 Construction Hoist is a widely used rack-and-pinion vertical transportation system designed for high-rise buildings, bridges, industrial plants, and infrastructure projects.
Unlike traditional lifting systems, the SC200/200 adopts a double cage structure 2×2000kg, enabling simultaneous up-and-down transportation of personnel and construction materials, greatly improving on-site efficiency and reducing labor cost.
With a modular mast system and robust steel structure, the hoist ensures stable operation even under heavy-duty construction conditions. It is widely used together with tower cranes in modern construction projects.
2 cages working simultaneously
2000kg capacity per cage
Separate transport of workers and materials
Significantly improved construction speed
Stable vertical movement
High precision stopping
Strong load capacity
Low maintenance requirement
Overload protection system
Emergency braking device
Upper & lower limit switches
Door interlock protection system
Anti-fall safety device
Suitable for high-rise buildings
Works in harsh weather conditions
Stable performance in long-term operation
| Item | Specification |
|---|---|
| Model | SC200/200 |
| Type | Double Cage Construction Hoist |
| Rated Load | 2 × 2000 kg |
| Rated Speed | 0–40 m/min |
| Max Lifting Height | 200–300 m project dependent |
| Cage Size | 3.0 × 1.5 × 2.2 m |
| Mast Section | 0.65 × 0.65 × 1.508 m |
| Drive System | Rack & Pinion |
| Motor Power | 2 × 3 × 11 kW / optional configurations |
| Voltage | 380V / 50Hz |
| Control System | VFD Optional PLC control |
| Certification | CE / ISO |
| Parameter | Value |
|---|---|
| Lifting Speed | 0–40 m/min |
| Rated Load | 2000kg × 2 cages |
| Max Height | up to 200–300 m |
| Safety System | Multi-layer protection |
| Operation Mode | Automatic / Manual |
| Safety Device | Function |
|---|---|
| Overload Protection | Stops operation when overload detected |
| Anti-Fall Device | Prevents cage dropping |
| Door Interlock Switch | Ensures cage door closed before operation |
| Upper/Lower Limit Switch | Prevents over-travel |
| Emergency Brake | Stops system in emergency |
| Speed Limiter | Controls safe operation speed |
The SC200/200 Construction Hoist is widely used in:
High-rise residential buildings
Commercial skyscrapers
Bridge construction
Industrial plants
Power stations
Infrastructure projects
Cement and steel factories
Airport and metro projects
Large-scale civil engineering works
| Feature | SC200/200 Hoist | Scaffolding | Manual Transport |
|---|---|---|---|
| Efficiency | Very High | Low | Very Low |
| Safety | High | Medium | Low |
| Labor Cost | Low | High | Very High |
| Speed | Fast | Slow | Very Slow |
| Vertical Transport | Excellent | Limited | Poor |
