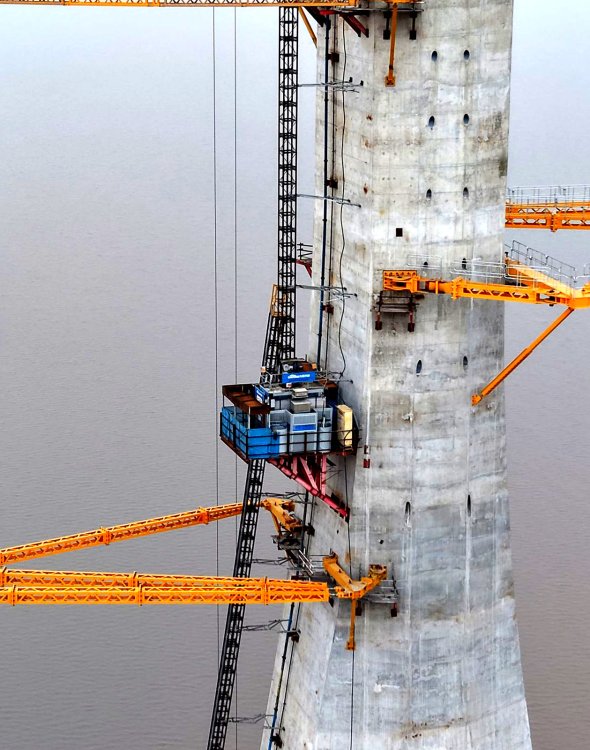

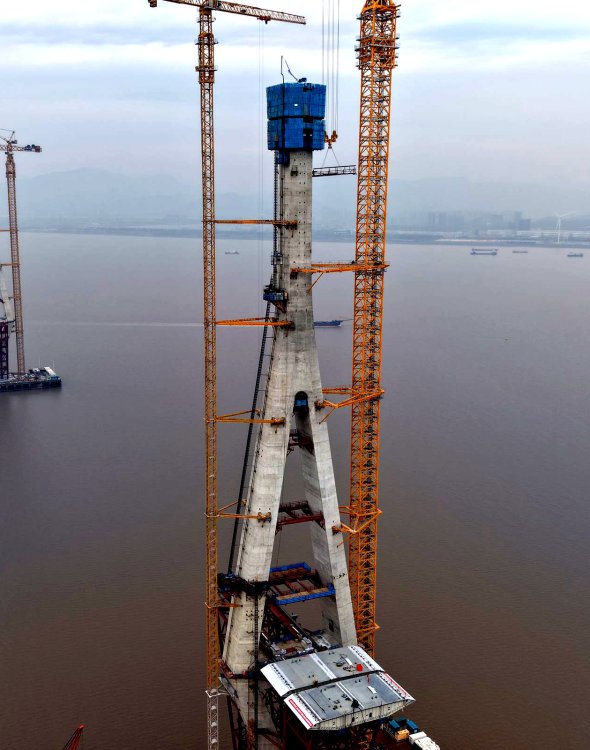

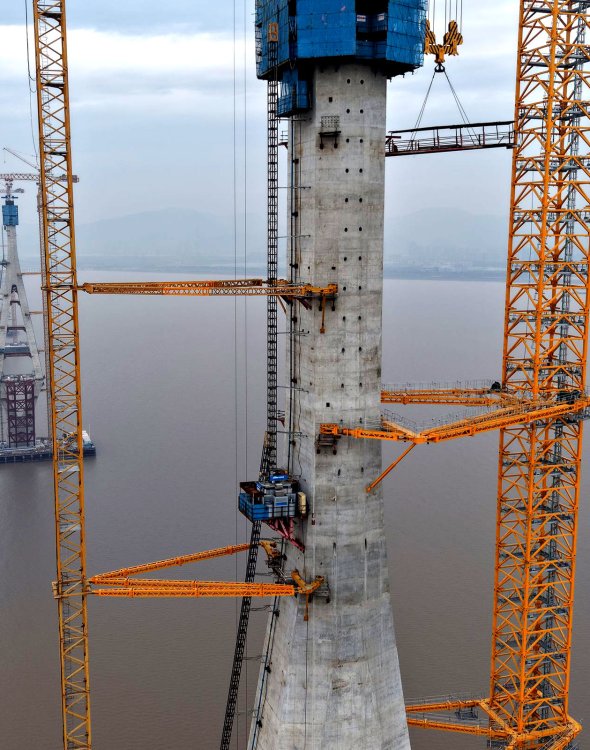

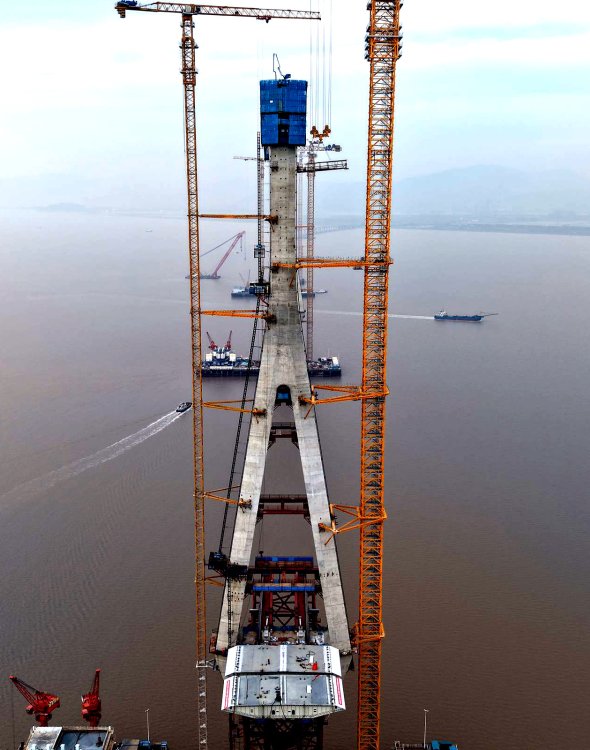

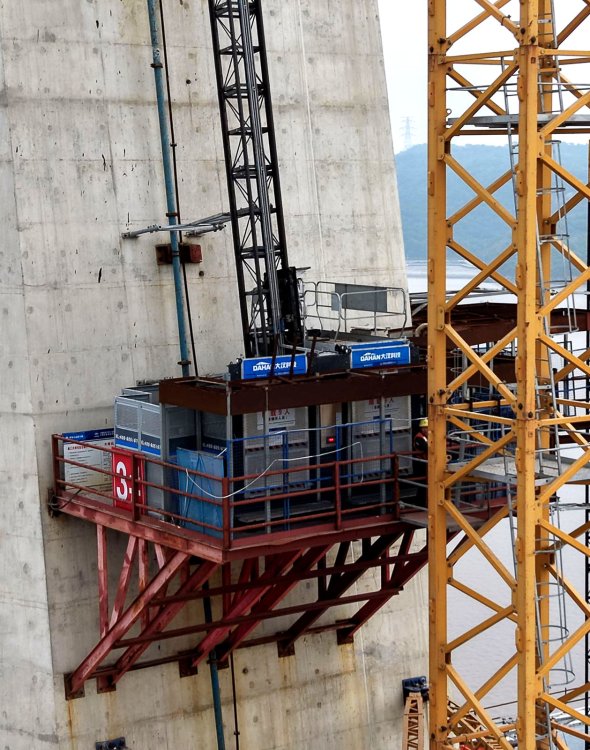

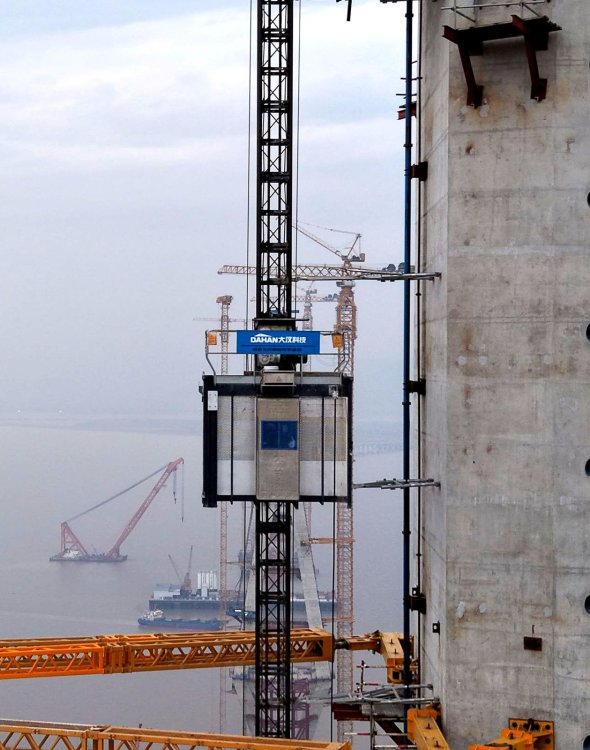

The Inclined SC200 is widely used in bridge engineering projects

Curved Linear Type SC200 Inclined Construction Elevator

The Curved Linear Type SC200 Inclined Construction Elevator is a specialized transportation solution designed for construction projects where conventional vertical hoists cannot meet operational requirements.

Unlike standard construction hoists, this inclined elevator operates along customized inclined guide rails, allowing safe transportation of personnel, equipment, and materials across slopes, tunnels, mountains, dams, and underground engineering projects.

Equipped with a single cage configuration and a rated load of 2 tons per cage, the system significantly improves transportation efficiency by allowing simultaneous movement of workers and construction materials.

The rack and pinion transmission system provides smooth and reliable movement even on steep inclines. Variable frequency control technology enables multiple operating speeds of 0-40-60m/min according to project requirements, improving both efficiency and safety.

The modular steel structure simplifies transportation, installation, and maintenance while maintaining excellent structural rigidity and long service life. Multiple intelligent safety protection devices ensure stable operation under complex working conditions.

The Curved Linear SC200 is widely used in tunnel excavation, hydropower construction, bridge engineering, mining projects, railway construction, and mountain infrastructure development where reliable inclined transportation is essential.

Key Features

Single Cage Design

• 2000kg rated capacity
• Simultaneous transportation of workers and materials
• Higher construction efficiency
• Reduced project duration

Inclined Transportation System

• Designed for inclined guide rails
• Stable operation on slopes
• Suitable for curved and linear rail systems
• Reliable performance in difficult terrain

Variable Speed Control

• 0-40-60m/min lifting speed
• Smooth acceleration and deceleration
• Accurate positioning
• Lower energy consumption

Rack and Pinion Drive

• Stable transmission
• High load capacity
• Low maintenance
• Long service life

Advanced Safety Protection

• Anti-fall safety device
• Overload protection
• Emergency braking system
• Upper and lower limit switches
• Door interlock protection
• Speed monitoring system

Why Choose DAHAN

26 Years Manufacturing Experience

DAHAN has specialized in construction lifting equipment manufacturing for more than 26 years and has exported products to more than 50 countries worldwide.

Advanced Manufacturing

• Intelligent production lines
• High-strength steel fabrication
• Precision machining
• Strict quality inspection

Reliable Product Quality

• CE and ISO certified
• Stable rack and pinion transmission
• High-performance electrical system
• Long service life

Global Technical Support

• Installation guidance
• Technical training
• Spare parts supply
• Overseas after-sales service
• Professional engineering support

Frequently Asked Questions

What is the rated load of the SC200 Inclined Construction Elevator?

The rated capacity is 2000kg with a single cage configuration.

What lifting speeds are available?

The elevator supports multiple lifting speeds of 0-40-60m/min depending on project requirements.

What drive system does it use?

It adopts a reliable rack and pinion drive system for stable inclined transportation.

What projects is it suitable for?

It is widely used in tunnels, hydropower stations, bridge construction, mining, railway engineering, mountain projects, and other inclined transportation applications.

Does DAHAN provide overseas installation support?

Yes. DAHAN offers installation guidance, commissioning, operator training, spare parts supply, and complete after-sales technical support for global customers.
